This induction hob with integrated ventilation combines two appliances in one for a clear view while cooking.

Twist Pad®: the removable, magnetic control dial for precise, convenient control.
Flex Induction: flexible cooking zones and automatic cookware detection.
Intuitive Flex Zones: place your cookware. And the size, shape and position are instantly detected.
Automatic Air Sensor – Constantly adjusts the extraction rate to match the situation in the kitchen.
High Extraction Rate – ensures a clear view while cooking thanks to efficient motor technology.

Neff V68AUX4C0 – N 90 Induction hob with integrated ventilation system, 80 cm

SKU: 4242004277507

£2,899.00

Twist Pad®
The stage is set for our intuitive little helper. The Twist Pad® is handy finger food for whatever you need. Simply touch the Twist Pad® lightly to activate the desired cooking zone, then rotate to select the desired power level. The magnetic Twist Pad® is removable and ready to transform your hob into a creative and easy-to-clean hotspot!

Flex Induction – Flexible induction cooking
Flex Induction makes it easier than ever to get creative with how you use your hob. Merge flexible cooking zones into one evenly heated surface. Use the large zone for bigger pots – or load it flexibly to cook rice, steam veggies and simmer sauces at the same time. Now your hob is smart, too! It scans the size and shape of your cookware and applies only the necessary heat.

Intuitive Flex Zones – Enjoy cooking with your intuitive hob
When placing cookware on your hob surface, it will immediately recognise the size, shape and position of your pot, and will connect or disconnect the Flex Zones accordingly. You just decide on the power level. And if you move a pot or pan, all settings are transferred automatically to the new zone. Now that is pure cooking joy.

Automatic Air Sensor – The hood knows what to do
FWhen you’re cooking, the fumes and smells in your kitchen are bound to vary. Instead of touching the controls, leave the Automatic Air Sensor in charge. It automatically keeps track of the air quality, so you can focus on your delicate dishes.

High Extraction Rate – Highly efficient steam and odour removal
Enjoy the pleasure of cooking in fresh air with our advanced motor technology that ensures a high Extraction Rate. This results in highly efficient steam and odour removal right at the source. Our powerful system effectively captures and eliminates steam and odour particles, preventing them from spreading throughout the room or lingering in fabrics. Even strong odours, such as fish, are effectively eliminated.

Reduced Noise
Silence is the gateway to the delicate poetry of your food. Have you heard the one about sizzling onions? Or the epic story about a searing steak? Our low-noise motor makes it possible to listen to your own kitchen story. Would you like to know the secret? It’s a form of audible relaxation that leads your creativity to new adventures.

Easy-clean filters
High-performance, low-maintenance. That’s how we designed our venting cooktops. Just grab the metal grease filter with one hand and pull it out. Then pop it into the dishwasher for easy cleaning.

Home Connect – Hobs with smart connectivity make life easier
Get ready to unlock your hob’s full potential. Simply sync your hob to your Home Connect account, and access information from anywhere, any time. Benefit from exciting possibilities offered by our range of ecosystem partners. Stay up to date on your hob's status, personalise your hob according to your preferences by adding more cooking funtions, or even preheat your oven from the hob. Access these features and more directly via the Favourites button on your hob.

Extended Frying Sensor – Say goodbye to burning!
Select one of the predefined temperature settings, and your hob will tell you when the pan has reached the right temperature. The Extended Frying Sensor constantly monitors your pan to keep the temperature steady and prevent burning. And with your hob synced to the Home Connect App, you get even more freedom. Select and create your recipe in Foodfittery, and directly send the Extended Frying Sensor settings to your hob. It will know what to do. It is frying, but beautifully connected.

Power Boost – More heat when you need it
Power Boost is our smart, time-saving cooking hack. Want to boil your pasta water in a flash? Simply activate Power Boost to heat it much faster. Get a flexible boost for your dishes.

Induction – Generate direct heat for precise cooking control
Cooking with induction means heat is generated directly in the cookware, ensuring direct control. Raise the heat to start cooking quickly, reduce it to slow things down - or even switch off your hob to stop the heat completely. Whatever you decide, your cookware reacts instantly. Thanks to intuitive operation, there is nothing to distract you from what really makes cooking worthwhile: the joy of experimentation
Light Dialog with two coloured display (white/red): see directly, which cooking zone is heating and which function is in use on the two-coloured display.
yes: directly access favourite functions with a configurable button (available with connected Home Connect account).
Variable 17-stage power settings for each zone: precisely adapt the heat with 17 power levels (9 main levels and 8 intermediate levels).
Switch-off timer: switches off the cooking zone at the end of the time set (e.g. for boiled eggs).
alternative: an alarm sounds at the end of the time set (e.g. for pasta).
Sound volume adaptable to personal preference and needs.
Power Boost function for all zones: boil water faster thanks to 50% more energy than at the highest standard level.
Cooking zones will be automatically joined or separated based on the shape and size of the cookware placed.
PowerTransfer: when moving a pot to a different cooking zone, this feature transfers all previous settings to the new zone at the touch of a button. when moving a pot, the settings adjust instantly and the cooking zone adapts to the size of the cookware
yes: when switched on, the hob automatically selects the cooking zone on which a new cookware is placed. yes: when switched on, the hob automatically selects the cooking zone on which a new cookware is placed.
QuickStart function: when switching on, the hob automatically selects the cooking zone with cookware (when placed on a zone whilst the hob is off).
ReStart function: in case of unintentional switch-off, this feature restores all previous settings by switching on the hob again within 4 seconds.

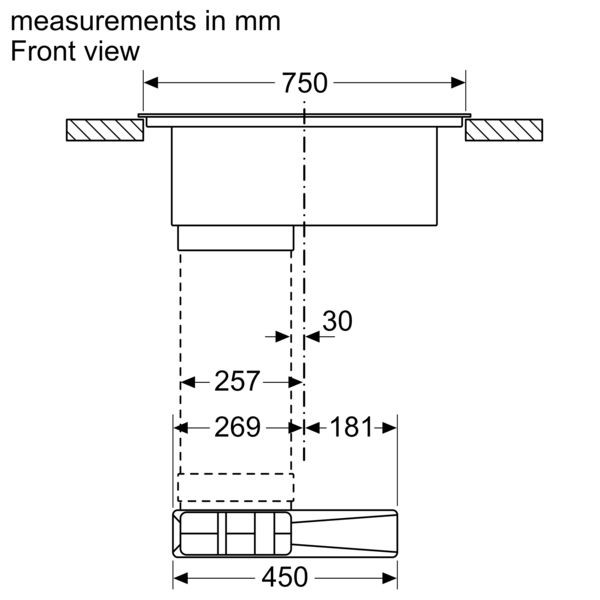

Dimensions of the product (HxWxD mm): 223 x 834 x 527
Required niche size for installation (HxWxD mm) : 223 x 750 x (490 - 500)
Min. worktop thickness: 16 mm
Connected load: 7.4 KW
4.6kW power output (20A); current management options for 16A, 13A or 10A connection: limit the maximum power if needed (depends on fuse protection of electric installation).
Power cord: 1.1 m, Cable included in packaging
Induction cooktop with fully integrated high-performance downdraft extractor.
Suitable for ducted or recirculated extraction configuration (incl. differentiated software modes). Installation accessories for unducted recirculation, among these four cleanAir odor filters and a telescopic slider element, are included in the cooktop. Accessories for other installation options are available, details in the planning notes.

Aesthetically integrated fully flush air intake design with floating, heat resistant glass ceramics element for free movement and placement of cookware.
- Automatic switch-on of ventilation system when a cooking zone is used.
- Sensor-based and cooktop-based, fully-automatic adjustment of power levels via advanced algorithm for maximum convenience.
- 3 possible sensitivity modes of algorithm for maximum convenience (Low-noise oriented, balanced, performance-oriented).
- Automatic delayed shut-off after cooking to erase residual odors after cooking (in specific ultra low-noise fan level, 12min in ducted extraction, 30min in recirculated extraction, can be shut-off manually).
High-performance, low-noise blower with energy-effcienct BLDC-technology. High extraction rates at very low noises with pleasant noise frequencies through psycho-acoustically and aerodynamically optimized interieur with enclosed, non-visible blower. Highly pressuredrop resistant even with longer and more complex ductings.
Easy-to-detach and easy-to-clean grease filter and liquid collector unit:
- Convenient one-hand removal of unit via floating glass ceramics handle.
- Integrated, large-scale, high performance stainless-steel grease filters with 12 filtration layers and one black top layer for enhanced aesthetical integration. Grease filtration efficiency of 94 %.
- All parts of the unit are easy-to-clean, fully dishwasher safe and heat resistant.
- (Upper) Liquid collector unit with 200ml of capacity for standard accidental spillages or cooking condensate.
- Powerful drainage system for spillages that exceed 200ml of liquids.
- Liquid safety collector with additional capacity of 700ml for more severe accidental situations. Dishwasher safe. Easily accessible and detachable from below.
- Overall capturing capacity of 900ml (200ml + 700ml).
- Watertight blower system.
Ventilation system performance:
- Extraction performance in ducted extraction (according to EN 61591): min. normal setting 154 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 622 m3/h .
- Extraction performance in recirculated extraction (according to EN 61591): min. normal setting 132 m3/h , max. normal setting 499 m3/h , max. Boost-/Intensive setting 595 m3/h.
- Noise level in ducted extraction (Sound power level according to EN 60704-3): min. normal setting 42 dB re 1 pW, max. normal setting 69 dB re 1 pW, max. Boost-/Intensive setting 74 dB re 1 pW.
- Noise level in recirculated extraction (Sound power level according to EN 60704-3. ): min. normal setting 41 dB re 1 pW, max. normal setting 68 dB re 1 pW, max. Boost-/Intensive setting 72 dB re 1 pW.
- Grease filter efficiency (according to EN 61591) 94 %.
Consumption data and energy efficiency (according to Regulation (EU) No 65/2014):
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D).
- Fluid Dynamic Efficiency: A .
- Average energy consumption: 57 .
- Grease filtration effciency class: B .
- Noise min. normal setting & max. normal setting: 42 dB & 69 dB .
For recirculation configuration: 2 x 2 battery of directly integrated, high-performance cleanAir odor filters.
- Optimised odour reduction performance for cooking applications with complex odour molecules (e.g. fish).
- Large scale filter surface with high odour reduction capabilities.
- Anti-pollen functionality: The filter retains an extremely high amount of airborne pollen and deactivates allergens which are retained by the filter.
- Lifetime of 360 hours of cooking (non-regenerative).
- Low-noise filters with optimised psycho-acoustics.
- Easy-to-access and easy-to-remove from above.
- Replenishment cleanAir filter set Z821VR0.
For ducted extraction configuration: 2 x 2 sets of directly integrated, high-performance low-noise acoustic filters for significantly lower noise and improved psycho-acoustics.
Suitable for ducted or recirculated extraction installations in 4 different options (unducted, partly and fully ducted recirculation or ducted extraction). Installation accessories for unducted recirculation, among these four cleanAir odor filters and a telescopic slider element, are included in the cooktop. The included accessories allow easy and quick installations and can be planned in all worktop depths ≥60cm. For other types of installation, one of the following accessory kits is recommended:
Z861KR1 for partly-ducted recirculation in worktops of ≥60cm depth with max. worktop height of 960 mm. Z861KR0 for partly-ducted recirculation in worktops of 70cm depth of ≥70cm depth with max. worktop height of 960 mm.
Z861KE1 as starter kit for ducted extraction in worktops of ≥60cm depth.
To complete the fully ducted extraction or to do any other individual recirculation planning different ducting accessories are available.
Planning suggestions:
- Installation is possible in island as well as wall oriented configurations.
The product and its accesories comply with the Needle Flame Test (according to IEC 60695-11-5) and the V2 flammability class (according to UL94).
- The max. immersion depth is 223 mm below worktop surface.
- The appliance must be freely accessible from below (i.e. for accessing the lower liquid safety collector).
- No false floor is necessary below the cooktop with integrated downdraft ventilation system. The drawers and/or shelves in the floor unit must be removable. The backpanel of the floor unit can be kept - only a cut-out for the air outlet is needed (position and size can be taken from the installation instructions).
An installation with unducted recirculation requires a vertical aperture of min. 25mm behind the backpanel of the furniture. Suggested for ideal performance are 50mm.
The minimum worktop thickness is 16 mm for top mounted and flush installed appliances with the standard installation system.
- The overall appliance weight is 26kg - the bearing capacity and stability, in the case of very thin worktops in particular, must be supported using suitable substructures. The overall appliance weight and the worktop manufacturer's structural integrity specifications are to be taken into account.
- For partly ducted and unducted recirculation extraction installations, a return-flow aperture of ≥400cm² is to be respected in the plinth area. The aperture can be realized via outlet grids, lamella grids or subtly shortened plinths depending on the assortment of the kitchen furniture manufacturer.
- The air outlet on the backside of the appliance can directly be accessed with a male flat duct element (DN 150).
- The pressuredrop resistant blower allows longer and more complex ductings up to 8m with three 90° bows while keeping sufficient performance.
- When installing a ventilation hood with ducted extraction and a chimney-vented fireplace, the power supply line of the appliance needs a suitable safety switch. This is not required for configurations in recirculated extraction.
- In ducted extraction configuration a one-way flap (or backflow trap) with a maximum opening pressure of 65Pa should be installed.
